CALLP Tactical Multi Function Imaging System
CALLP Tactical Multi Function Imaging System
(TMFIS)

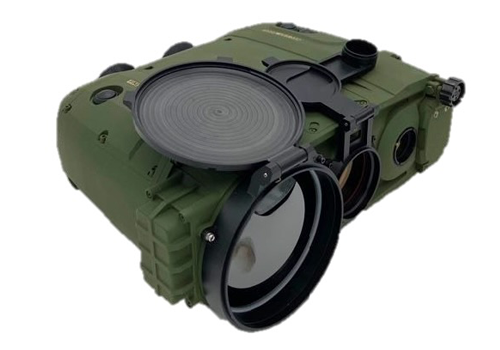

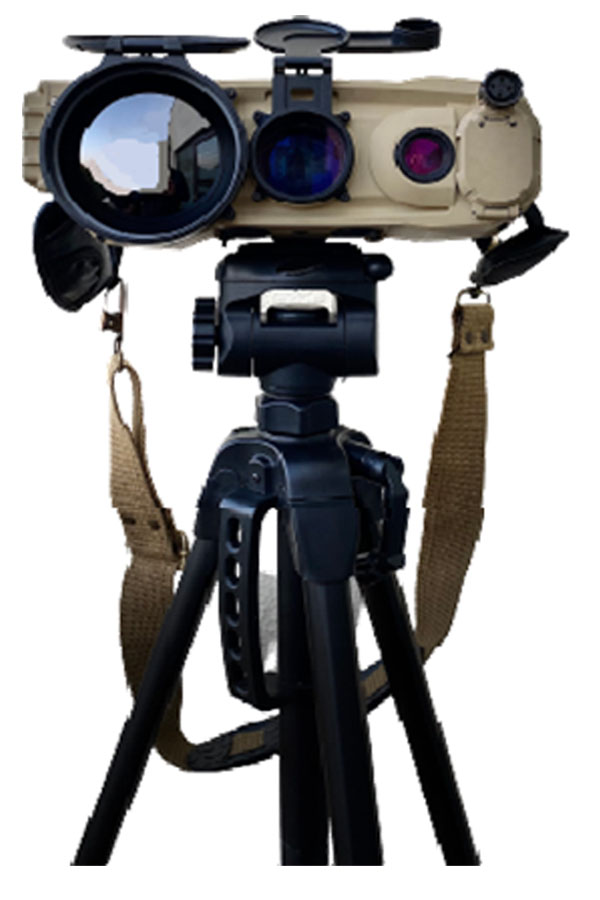

TMFIS is a multifunction thermal imaging system that provides soldiers with an advanced, light weight solution for day and night reconnaissance, surveillance and forward observation purposes.
It consists of five main sub modules, Day CMOS Camera, Thermal Camera, Laser Range Finder, Digital Magnetic Compass and GPS.
It also gives the blue forces real-time target acquisition and target coordinate calculation capabilities.
Characteristics

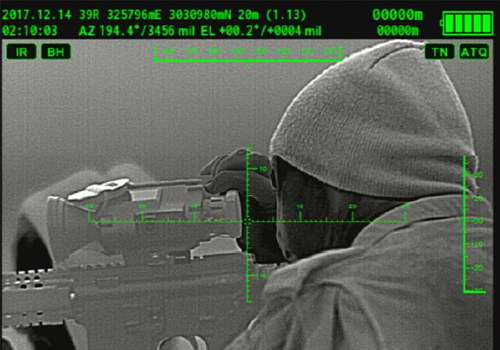

- Thermal Imaging Camera
- Day CMOS CAMERA
- Digital Magnetic Compass
- Imaging Fusion
- Laser Range Finder
- GPS

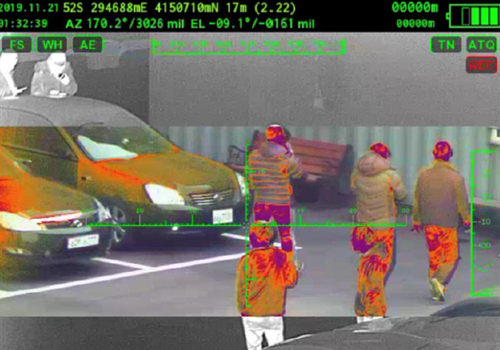

Thermal and Imaging Fusion Mode
| Category | Performance | |
|---|---|---|
| Thermal | ||
| Sensor Type | Uncooled 640×480 FPA | |
| Field of View | 7.0 °± 10%, Optical 6X, E-Zoom 4X | |
| Detection | 7.0 Km [NATO sized target 2.3 x 2.3m] | |
| Recognition | 3.4 Km [NATO sized target 2.3 x 2.3m] | |
| Day Time | ||
| Sensor Type | 5 Mega Pixel CMOS | |
| Field of View | 7.0 °± 10%, Optical 7X, E-Zoom 6X(Countinuous) | |
| Detection | 7.0 Km [NATO sized target 2.3 x 2.3m] | |
| Recognition | 4.0 Km[NATO sized target 2.3 x 2.3m] | |
| Laser Range Finder | 70m – 5,000m [NATO sized target 2.3 x 2.3m]
10 Km [Building sized target] |
|
| GPS | C/A code [GPS, GLONASS, GALLILEO support]
IGRS External GPS support |
|
| Digital Magnetic Compass | Magneto resistive 0.25°[1σ]
Gravity Sensor 0.1°[1σ] |
|
| Environmental Condition | Operating : -32 ~ 55℃
MIL-STD-810G / MIL-STD-461F |
|
| Diopter | -6D to +2D | |
| Other |
|
|
- Image Stabilization / Image Capture & Recording
- Auto Standby / Arabic Support
- Thermal Image Color Support
- Imaging Fusion Support
- CMOS Low Light Mode Support

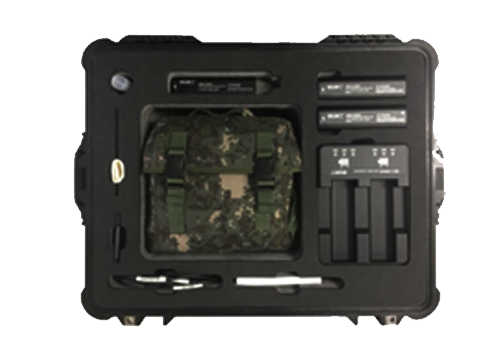

Basic Issue Item
